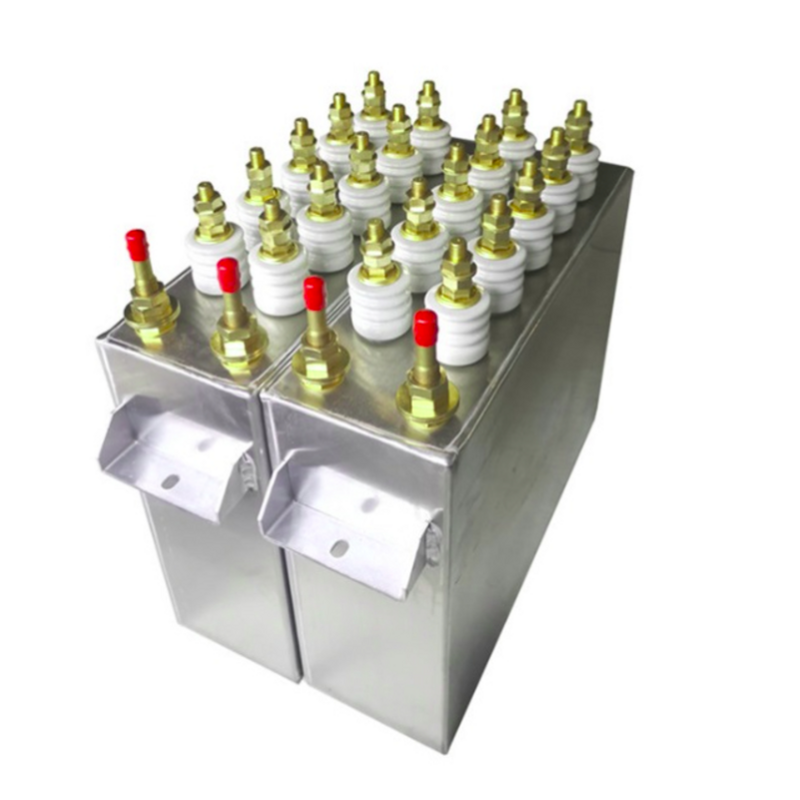

Water Cooled Capacitor

Category：Capacitor
Views：370
Product description：Water Cooled Capacitor, Induction heating Capacitor , Manufacturer Power Capacitor, Supplier Water cooled Capacitor , China manufacturer Capacitor, DC filter Capacitor, RC capacitor , Power Shunt Capacitor Factory , China supplier Medium Frequency Capacitor
INQUIRY

Application:

The capacitor is suitable for controlled or adjustable AC voltage system , and specifically dedicated to improve power factor and circuit property in applications such as induction heating, melting,agitating, casting thermal treatment etc.

Operational Requirement

Place installed	indoors
Altitude	less than 1000m
Ambient Temperature	-20℃ ~+50℃
Capacitance Tolerance	-5%~+10%
Max voltage	rated voltage ×1.05
Max current	rate current ×1.15
Dielectric Material	Polypropylene film
Insulation oil	PEPE or M/DBT (Non-PCB)
Cooling mode	water cooled or Air cooled
Water Pressure Required	about 0.25~0.35Mpa (max. 1Mpa)
inlet water temperature	No more than 35℃
outlet water temperature	No more than 45℃

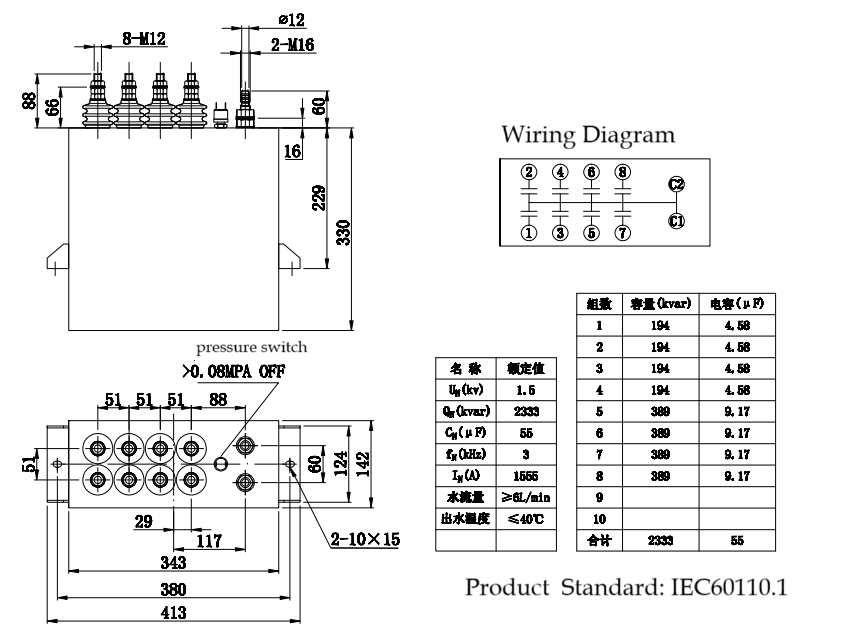

Pressure switch	Normally closed (NC) type OFF 0.08Mpa ON 0.05Mpa
Body material	Aluminium alloy sheet -thickness 3mm
Installation Mode	Normally Vertically installed
Max. tighten Torque	20N.m
Implementation Standard	IEC60110-1:1998
