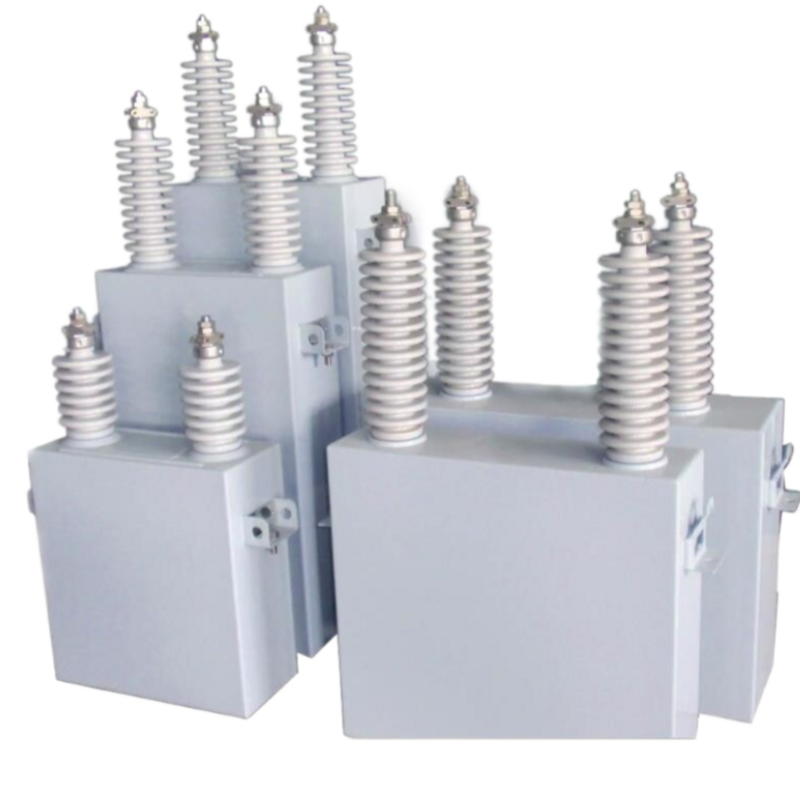

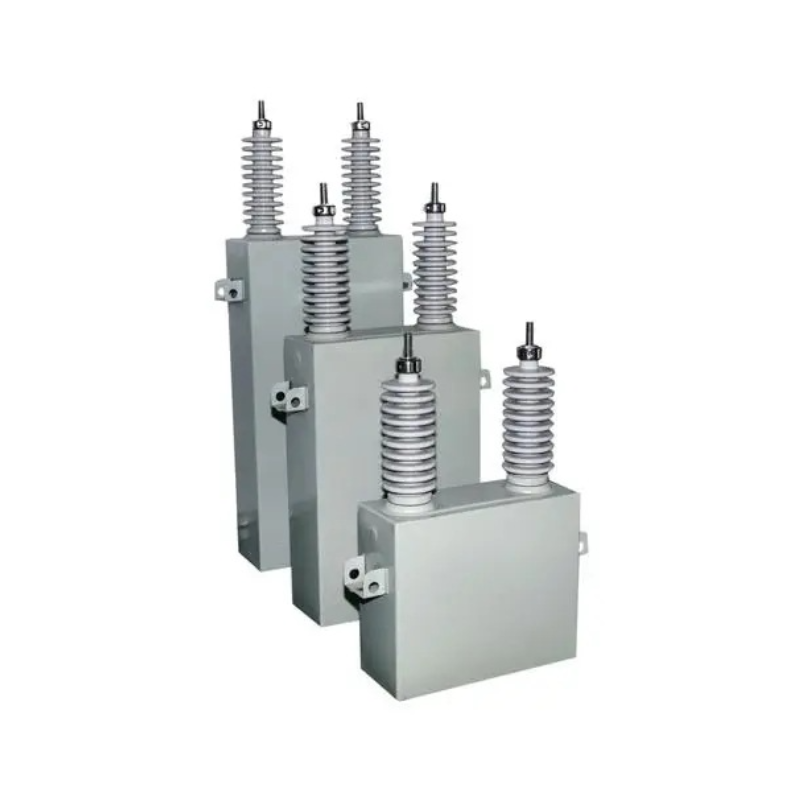

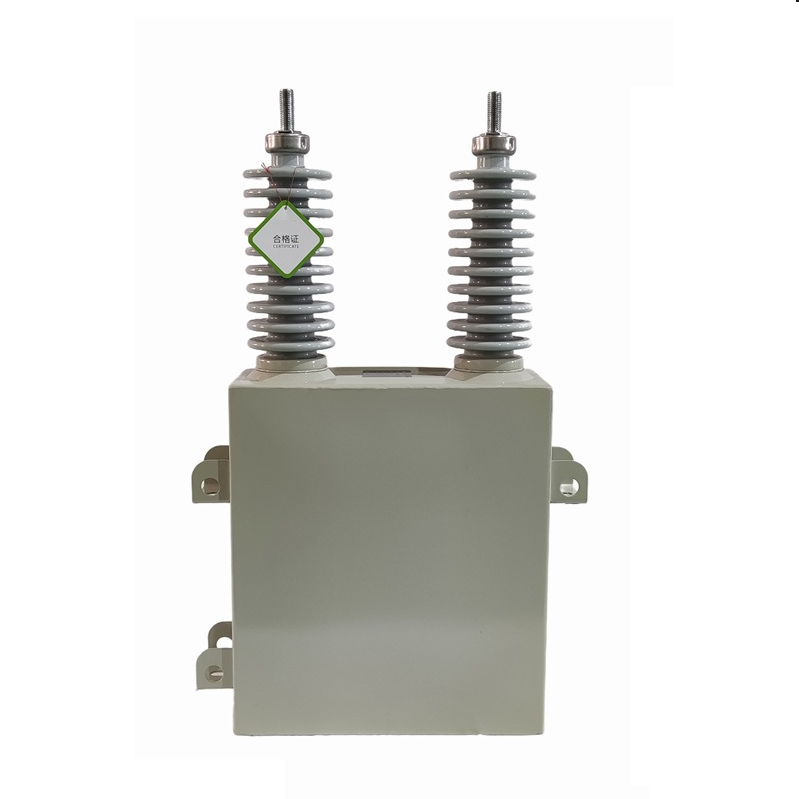

Power Shunt Capacitor

Application:

The capacitor suitable for parallel connection in industrial frequency alternating

current system,which is used to improve power factor of the power grid, improve

voltage quality and reduce line loss.

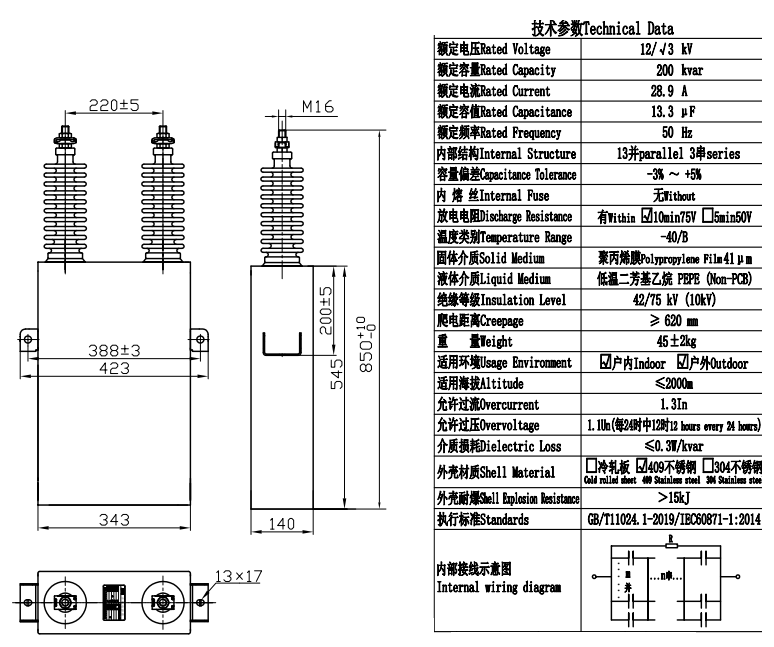

Technical parameters:

Voltage level: 1 ~ 24kV

Capacity level: 100 ~ 800kvar

Capacitance deviation: -3% ~ +5%

Dielectric loss tangent value: ≤0.03%

Protection methods: internal fuse or no fuse

Product introduction:

The shunt capacitor consists of a core, a fuel tank, and an outlet porcelain casing.

The core of the shunt capacitor is composed of a series of components, parallel connection

and insulation parts.The tank of the parallel capacitor is welded with high-quality steel plate,

and the outlet casing is welded on the box cover. The shunt capacitor can be designed as an

internal fuse or no fuse structure.

Work Condition:

The altitude is less than 2000m

Ambient temperature: -40 to 45°C

Installation site: indoor or outdoor

There is no conductive or explosive dust, no harmful gas and steam, and no

severe mechanical vibration in the installation and operation area.

Executive standard:

GB/T 11024.1-2010

IEC 60871
