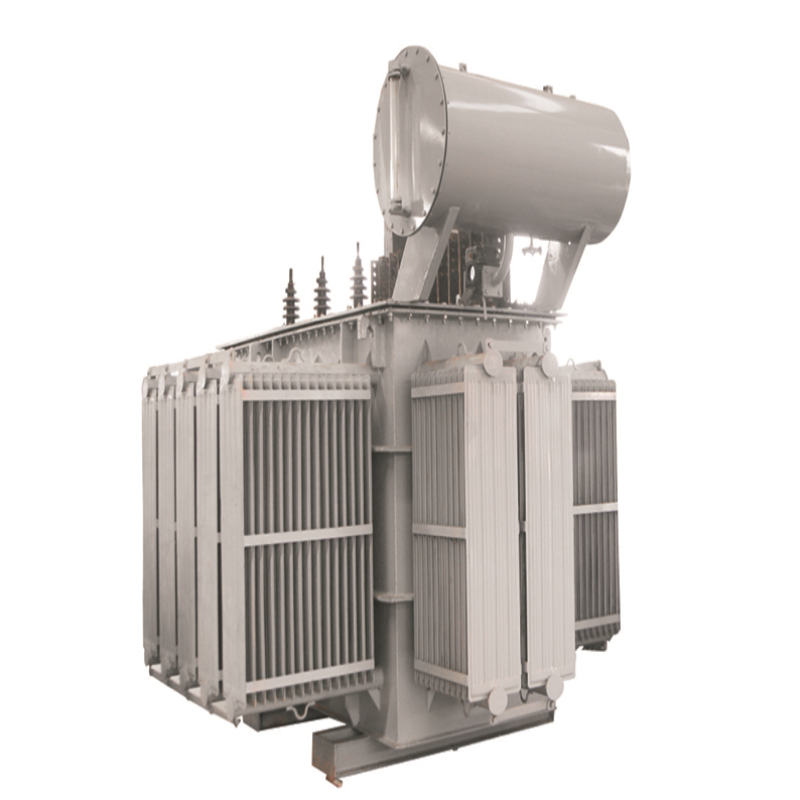

Oil-immerse Shunt Reactor

BKS oil-immerse shunt reactor is used to compensate the capacitive charging current of the line, limit the rise of the system power frequency voltage and the operating overvoltage, thus reducing the insulation level of the system and ensuring the reliable operation of the line. With the continuous expansion of China's urban scale and the transformation of the urban power grid, the overhead line transmission is gradually replaced by the underground cable transmission, making the capacitive charging current to the ground of the transmission network increase sharply. In order to reduce the rise of the system power frequency voltage and the system insulation level, ensure the safe and reliable operation of the system and the quality of the urban power grid power supply Shunt reactors widely used in long-distance transmission systems are widely used in urban distribution networks.

Working conditions

1. Altitude shall not exceed 1000 meters;

2. Operating ambient temperature is - 25 ℃ to+45 ℃, and the relative humidity is not more than 90%;

3. No harmful gas, flammable and explosive substances around.

Performance parameters

Rated voltage: 10kV, 35kV

Insulation level: Li75AC35, Li200AC85

Rated frequency: 50Hz

Insulation class: Class A

Connection group: Y

Rated reactance rate: 100%

Executive standards

GB 1094.1-1996 Power Transformers Part 1 General

GB 1094.2-1996 Power Transformers - Part 2: Temperature Rise

GB 1094.3-2003 Power Transformers - Part 3: Insulation Level Insulation Test and External Insulation Air Gap

GB 1094.5-2003 Power Transformers - Part 5: Ability to withstand short circuit

JB/T5346-1998 Series Reactor

GB/T10229-1988 Reactor

DL/T462-1992 Technical Conditions for Ordering Series Reactors for High Voltage Shunt Capacitors

IEC289-1988 Reactor

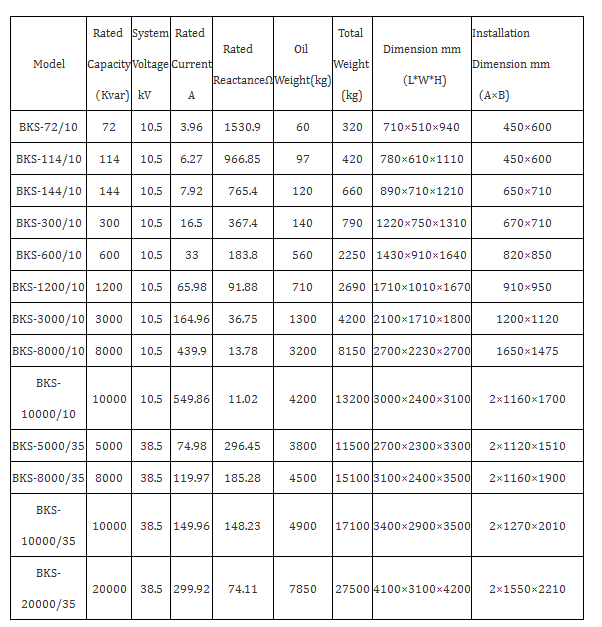

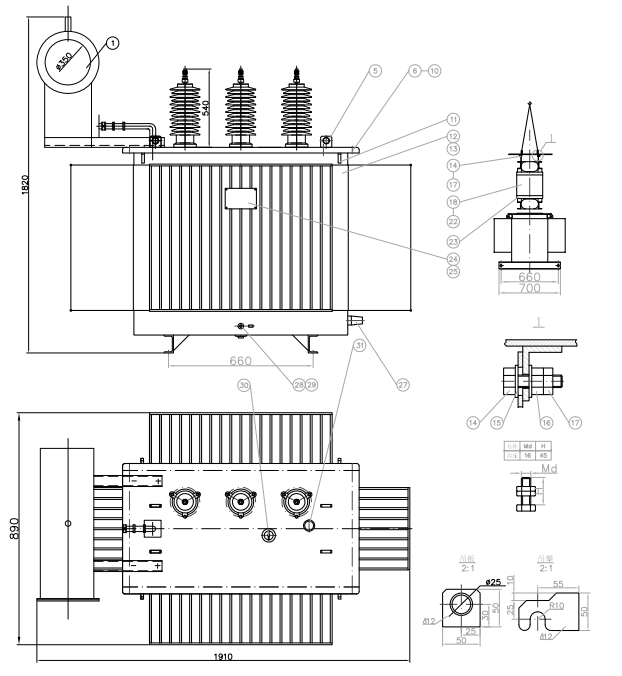

Technical Data
