10kV voltage regulating distribution transformer

Product Item : 3
Category：Transformer
Views：413
Product description：10kV voltage regulating distribution transformer,Control Transformer, Lighting Transformer , Dry type Transformer , Distribution Transformer, Oil-immerse Transformer, China supplier distribution Transformer
INQUIRY

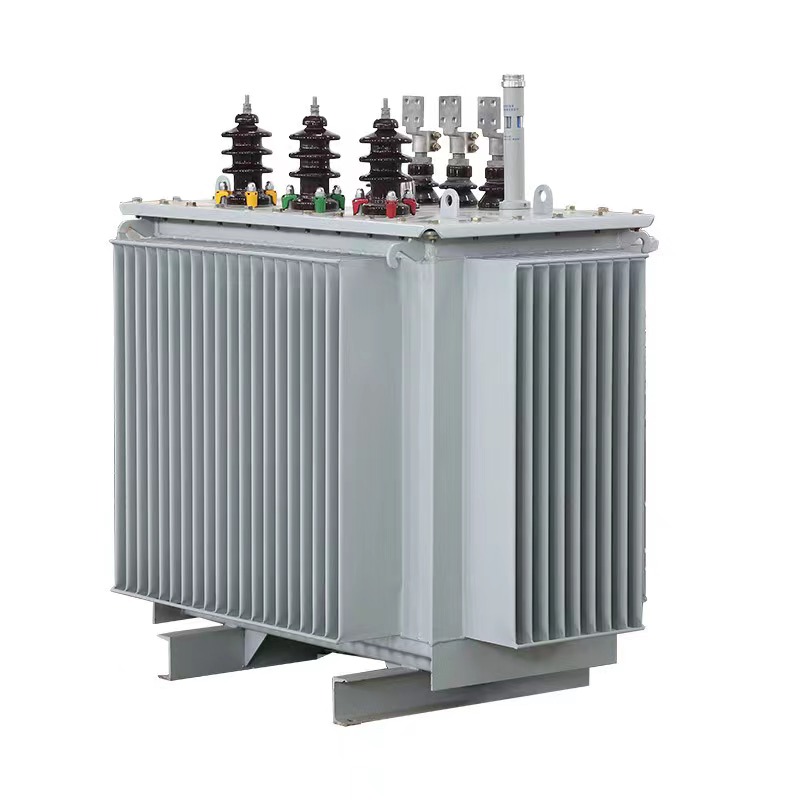

S11 type 10kV non-excitation voltage regulating distribution transformer

The power transmission and distribution system transfers the electric energy from the remote power plant to the user through regulation. The electric energy is transmitted through the high-voltage transmission line, and then can be suitable for the user after the voltage is reduced in several levels of substations. The distribution transformer located near the final power user will eventually reduce the voltage to the appropriate value. The transformer that reduces the voltage to the working voltage of electrical equipment is called distribution transformer. This type of transformer is used for daily lighting and factory power. Generally, the low voltage is 0.4kV and below. The capacity of distribution transformer is small, generally 2500 kVA and below, and the primary voltage is also low, all of which are 35 kV and below.

Working conditions

High temperature+40 ℃

Average temperature in hot month+30 ℃

Hot annual average temperature+20 ℃

Low temperature - 25 ℃

The altitude does not exceed 1000m

No obvious pollution in the installation environment

Outdoor installation

Executive standards

GB1094.1-1996 General rules for power transformers

GB1094.2-1996 Temperature rise of power transformer

GB1094.3-2003 Power Transformer Insulation Level and Insulation Test

GB1094.5-2003 Short circuit withstand capacity of power transformer

GB/T10228-2008 Technical parameters and requirements for dry-type power transformers

Overall Dimension and Technical Data

Rated Capacity（KVA）	Voltage Combination			Connection	No-load current (%)	No-Load Loss (W)	Load Loss (W)	Short-circuit Impedence(%)
Rated Capacity（KVA）	High Voltage (kV)	Tapping Range	Low Voltage (kV)	Connection	No-load current (%)	No-Load Loss (W)	Load Loss (W)	Short-circuit Impedence(%)
30	6 6.3 10 10.5 11	±5% or ±2×2.5%	0.4	Yyn0 or Dyn11	0.35	80	630/600	4
50					0.3	100	910/870
63					0.25	110	1090/1040
80					0.24	130	1310/1250
100					0.22	150	1580/1500
125					0.21	170	1890/1800
160					0.2	200	2310/2200
200					0.19	240	2730/2600
250					0.18	290	3200/3050
315					0.17	340	3830/3650
400					0.16	410	4520/4300
500					0.16	480	5410/5150
630					0.15	570	6200	4.5
800					0.15	700	7500
1000					0.14	830	10300
1250					0.14	970	12000
1600					0.12	1170	14500
